SPECIFICATION:
OD: 21.3~406.4mm(1/2"~16")
WT: 1.2mm ~ 20mm
LENGTH: 6mtr ~ 12mtr, Ramdon Length, Fixed Length, SRL, DRL
ZINC COATING: 230~550g/m2
STANDARD AND GRADE:
GB/T 3091 Q195/Q215/Q235/Q345, BS 1387, EN 39, EN 1139 S235JR/S275JR, ASTM A53 GR. A/B/C, JIS G3444 STK 400/STK 500
PIPE TYPE:

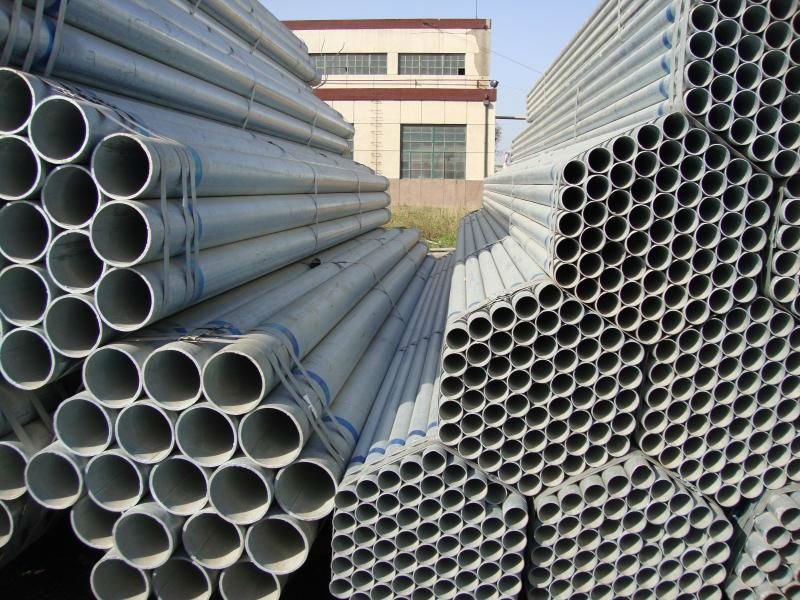

Electric Resistance Welded Steel Pipe (Round/Square/Rectangular)
END: Square Cut/Threaded, Burr Removed

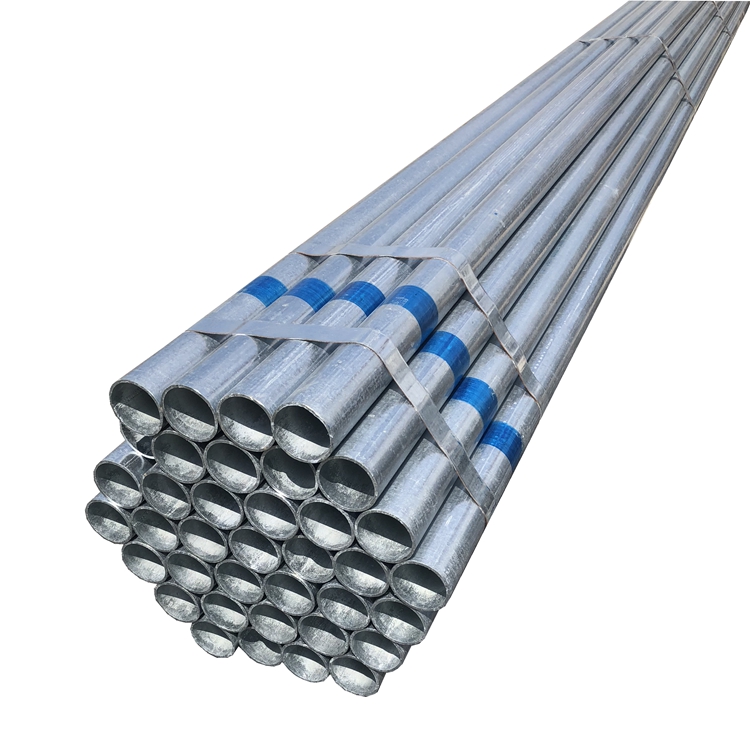

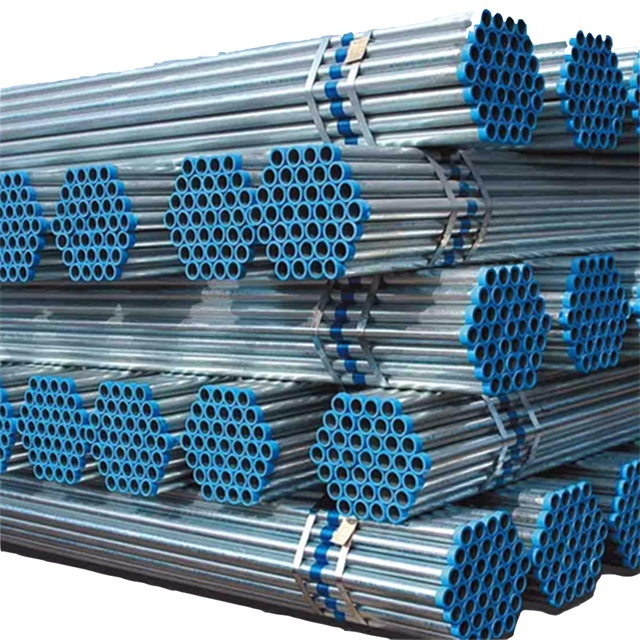

PACKAGE: Steel Strips bundled, Plastic Caps plugged, Waterproof Paper wrapped etc.
| Item Code | Outer Diameter | Wall Thickness | Length | |
|---|---|---|---|---|
| inch | mm | mm | mm | |
| ADTO02GCGL0022 | 1/2" | 21.3 | 2.6 | 6000 |
| ADTO02GCGL0023 | 3/4" | 26.7 | 2.6 | 6000 |
| ADTO02GCGL0024 | 1" | 33.4 | 3.2 | 6000 |
| ADTO02GCGL0025 | 1 1/4" | 42.2 | 3.2 | 6000 |
| ADTO02GCGL0026 | 1 1/2" | 48.3 | 3.2 | 6000 |
| ADTO02GCGL0027 | 2" | 60.3 | 3.6 | 6000 |
| ADTO02GCGL0028 | 2 1/2" | 73 | 3.6 | 6000 |
| ADTO02GCGL0029 | 3" | 88.9 | 4.0 | 6000 |
| ADTO02GCGL0030 | 4" | 114.3 | 4.5 | 6000 |
| ADTO02GCGL0031 | 5" | 141.3 | 4.8 | 6000 |
| ADTO02GCGL0032 | 6" | 168.3 | 4.8 | 6000 |
| ADTO02GCGL0033 | 8" | 219.1 | 5.4 | 6000 |
| Steel Grade: | Q195, Q235, Q345 | Gr.A, Gr.B, Gr.C, | S235JR, S275JR, S355JR | S235JRH,S275J2H,S355J2H | STK400, STK500 | Gr.A, Gr.B |
|---|---|---|---|---|---|---|
| Standard: | GB/T3091-2001 | BS1387-1985 | DIN EN10025 | EN10219 | JIS G3444:2004 | ASTM A53 |
| Surface finish: | hot-dipped galvanized, electro galvanized, threaded, socket, engraved, groove, etc. | |||||
| Usage: | Construction,water pipe,gas pipe,etc | |||||
Packing And Delivery
1.Packing: weaving bag, non-woven fabric, seaworthy bundle,wooden case if required.
2.Delivery: within 30 days after receiving L/C or TT.
Our Services
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries professional in English of course.
• Working time: 8:00am - 5:30pm, Monday to Friday.
• OEM is highly welcomed. We have strong R&D team here to help.
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back if you got question.
Our Services Company Information
Our company is a leading manufacturer of ERW steel pipes.
• 15 years experience, annual sales volume reaches 2.0 billion US dollars for the past five years.
• Good quality control in production process, ISO9001:2008,SGS,BV approved.
• Excellent quality and Competitive price, OEM is available.
• Available in an extensive range of stock or custom size.
• The whole process from material to finished products can be traced.
• Our factory is located in Tianjin,China.
