PRODUCTS DESCRIPTION:

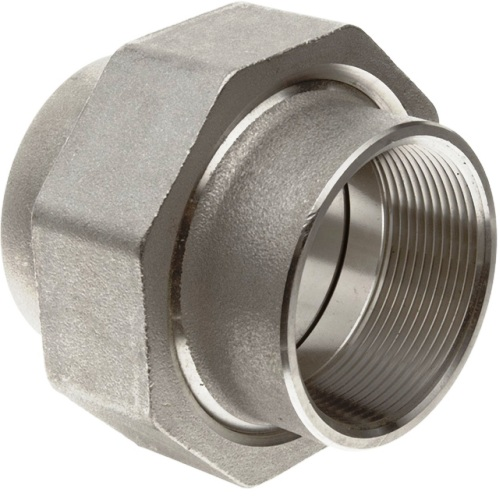

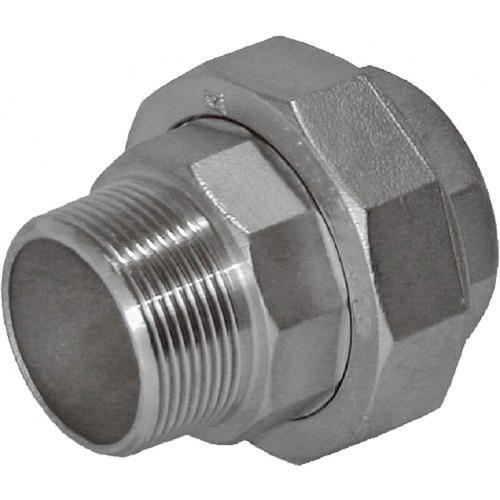

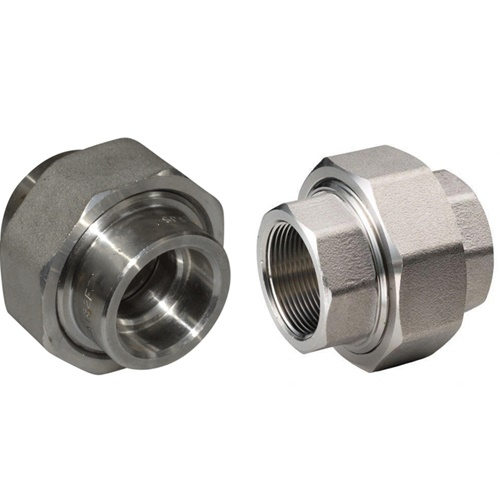

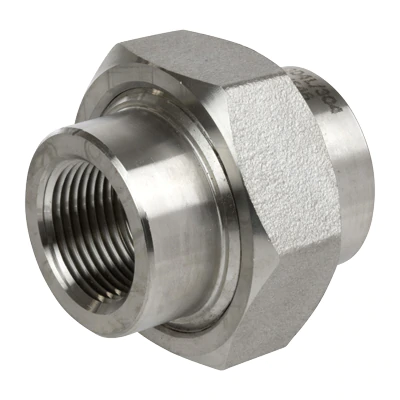

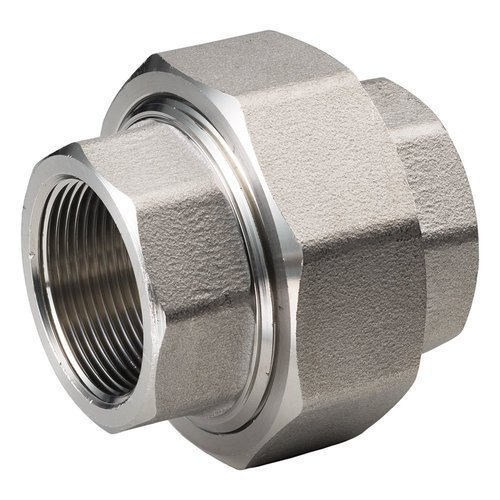

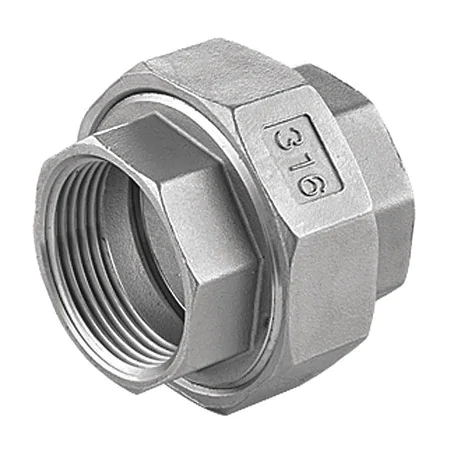

Union: It is a commonly used pipe connector that can be easily installed and removed. It mainly consists of a nut, a cloud head, and a flat joint.
PRODUCTS SPECIFICATION:
| 1.The Connection Type of Union: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Socket Welding and Threaded Connections | |||||||||
| 2.The main parameters of Union: | |||||||||
| 公称通径 | 外径 | 壁厚 | 承插孔径 | 流通孔径 | 承插孔深度 | 公称装配长度 | |||
| Nominal Diameter | Dmin | Cmin | d1 | d2 | min | L | |||
| A | B(in) | 承插焊 | 螺纹 | 承插焊 | 螺纹 | 承插焊 | 承插焊、螺纹 | 承插焊 | 承插焊、螺纹 |
| Socket | Threaded | Socket | Threaded | Socket | Socket & Threaded | Socket | Socket & Threaded | ||
| 6 | 1/8'' | 21.8 | 14.7 | 3.2 | 2.5 | 10.65 | 6.43 | 10 | 41.4 |
| 8 | 1/4'' | 21.8 | 19 | 3.3 | 3.1 | 14.1 | 9.45 | 10 | 41.4 |
| 10 | 3/8'' | 25.9 | 22.9 | 3.5 | 3.2 | 17.55 | 13.51 | 10 | 46 |
| 15 | 1/2'' | 31.2 | 27.7 | 4.1 | 3.8 | 21.7 | 17.07 | 10 | 49 |
| 20 | 2/4'' | 37.1 | 33.5 | 4.3 | 4 | 27.05 | 21.39 | 13 | 56.9 |
| 25 | 1'' | 45.5 | 41.4 | 5 | 4.6 | 33.8 | 27.74 | 13 | 62 |
| 32 | 1-1/4'' | 54.9 | 50.5 | 5.3 | 4.9 | 42.55 | 35.36 | 13 | 71.1 |
| 40 | 1-1/2'' | 61.5 | 57.2 | 5.6 | 5.1 | 48.65 | 41.2 | 13 | 76.5 |
| 50 | 2'' | 75.2 | 70.1 | 6.1 | 5.6 | 61.1 | 52.12 | 16 | 86.1 |
| 65 | 2-1/2'' | 91.7 | 85.3 | 7.7 | 7.1 | 73.8 | 64.31 | 16 | 102.4 |
| 80 | 3'' | 109.2 | 102.4 | 8.4 | 7.7 | 89.8 | 77.27 | 16 | 109 |
| 3. The Detail Information For Union: | |||||||||
| (1). Socket welding Union are Equal Union and Reducing Union. | |||||||||
| (2).The Size of Threaded Union: 3/8 ″ × 1/2 ″ –4 ″ × 2 ″ | |||||||||
| (3). Connection method of Threaded Union: BSP external thread × BSP internal thread | |||||||||
| 4.Implementation Standards: | |||||||||
| ASME B16.11, MSS SP 83, etc. | |||||||||
Packing And Delivery
1.Packing: weaving bag, non-woven fabric, seaworthy bundle,wooden case if required.
2.Delivery: within 10 - 30 days after receiving L/C or TT.
