Australian Melbourne

PCP Dock Construction Tubular Piling Project

Client: MCCONNELL

1. Introduction:

This project is for the rebuilding and extension of the dock. Porject located at Yarra River Bayou of south coast of VIC, the Southeast of Australia, in the Hobsons Bay of north Port Phillip

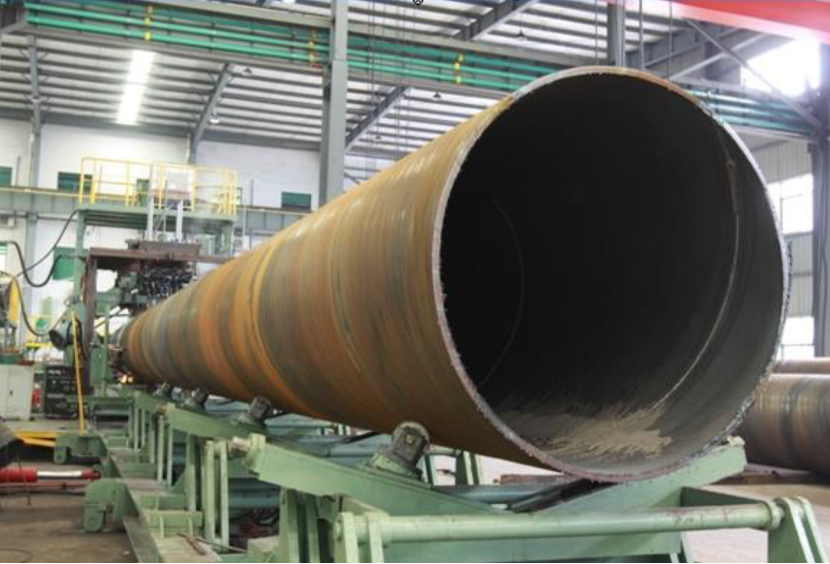

2. Products: SSAW steel pipes, C9 Clutch, Lifting hole, Shear bead ring,

Φ1500mm x 25mm and Φ1500mm x 20mm dual wall thickness

Φ1500mm x 20mm

Φ1200mm x 20mm

Φ900mm x 20mm

Φ610mm x 9.5mm

Φ457mm x 12.7mm

Grade: Q390C

Spec.:AS1554.1/AWS D1.1 & Project Spec

Surface preparation: Sa3.0

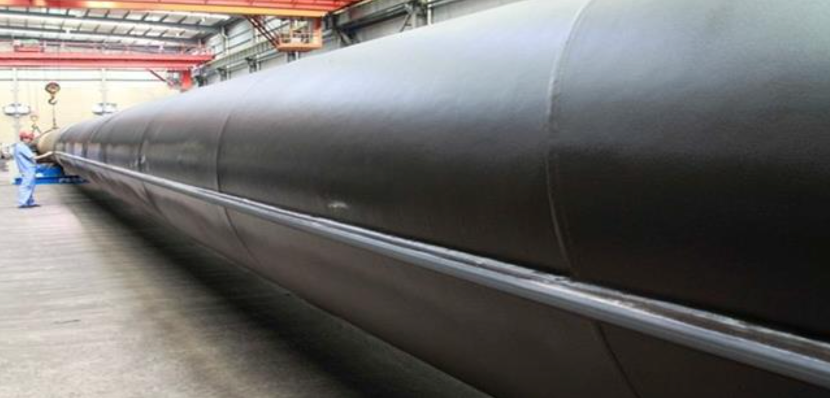

Paint: JOTUN Jotacote UHB DFT:≥1500μm Coating area:50000.00sq.m

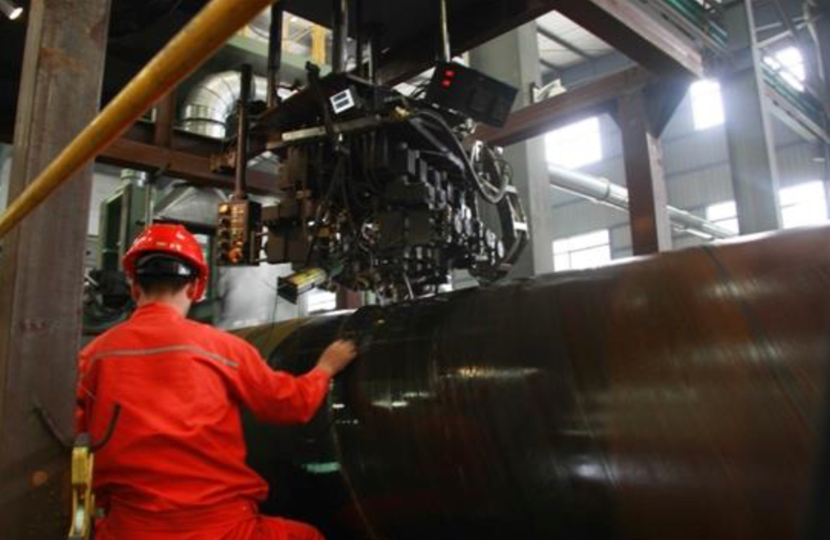

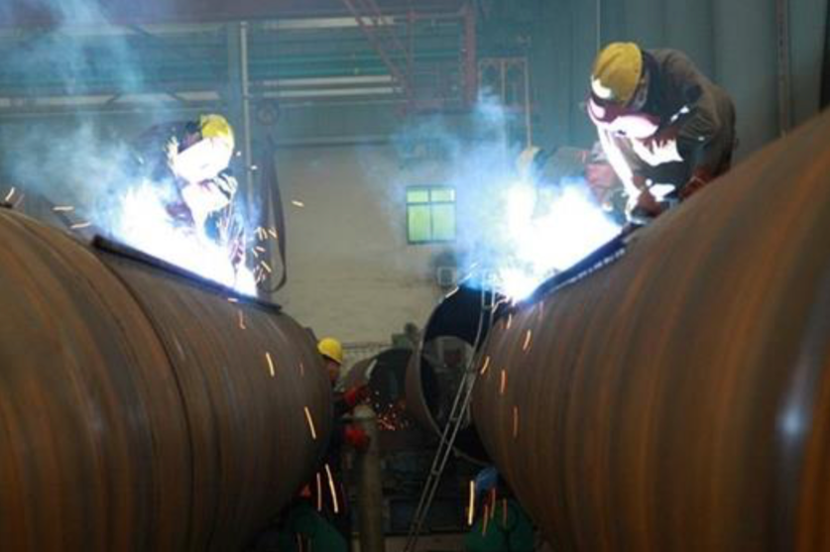

3. Production and Inspection & Photos

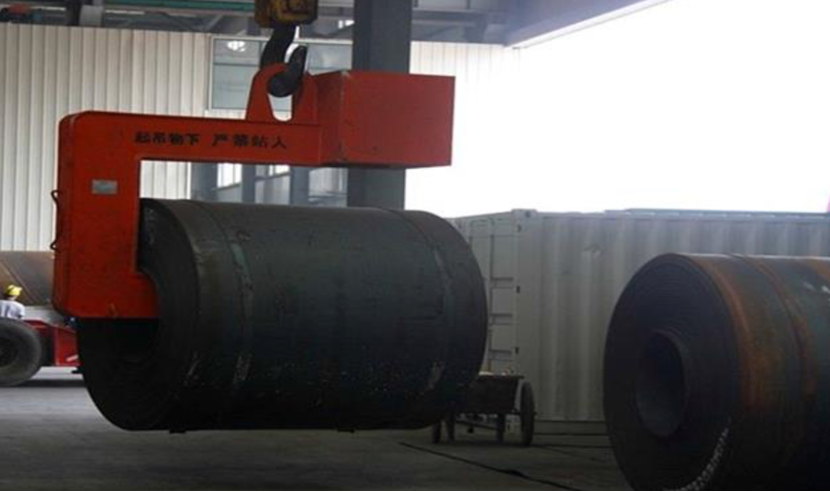

Feeding HR Coils:Q390C;Size: 1600 x 9.5 - 25mm
